Energy - Capacity to do work



I)                Work - when a ___________ causes an object to __________

         in the direction of that force.



                                *** ______________ - means direction doesn't count



A) Equation           W =  ________     Fm - force acting in same direct as motion

          (Nm) (N)(m)   d - displacement





Other units for work (______________) or   Kg m2
      sec2

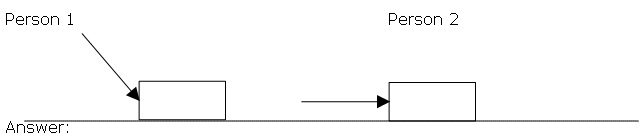

Challenge Question: Two people exert a 10 Newton force on a block for 2 meters.  One person exerts her force at a 50-degree angle.



Did both people do the same work???





B)     Work and F vs. displacement diagram





____________ under a Force vs. displacement plot is equal to ________




II.     Energy (Joules) - 2 kinds



A)               Potential Energy - ________________ energy that an object has

due to its ________________ or ________________



1.                  ________________ P.E. g (PE is an abbreviation for Potential Energy)



                                Not in reference





                        P.E. g  = ________________     g - on earth = 9.8 m/s2



       units





                        mg = ________________________________



h = ________________ - distance force could be exerted



 DP.E. = ________________



Ex) What P.E. is gained when a 100 kg object when it is raised 4m straight

      up?







What PE would be gain if the object were moved 4m to the right?
