What happens to electrons in the filament?





Is resistance in a wire always bad?

School blocks YouTube? Use the file below.

bulbResistance.mp4



Show Me The Physics
YouTube Channel





Fill in the Blank Notes





2) The resistance in a wire depends on:





a) resistivity - ρ  a metals structural resistance to electron flow

p. 4 Reference



b) Length (L) of the wire







c) Thickness (Cross Sectional Area) of the wire (A)



Why do powerful

speakers require

thick speaker wire?

[ Flash ]



"Large speakers draw a lot

of current. Thick wires have

lower resistance"






R = ρL/A

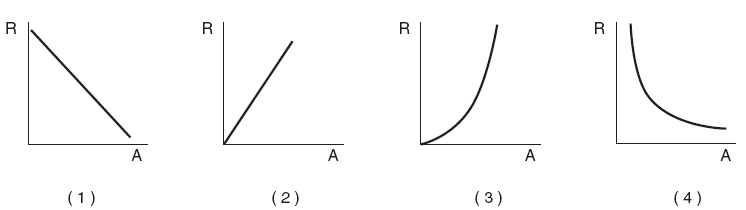

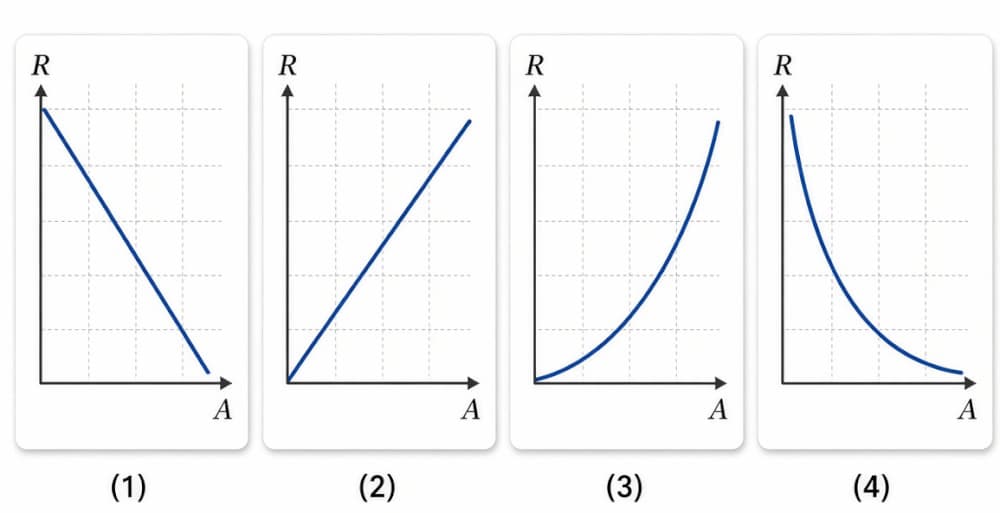

Ex) R, A relationship?







Inverse relationship

4



R = ρL/A

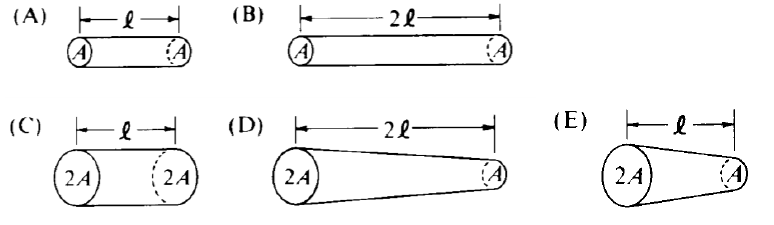

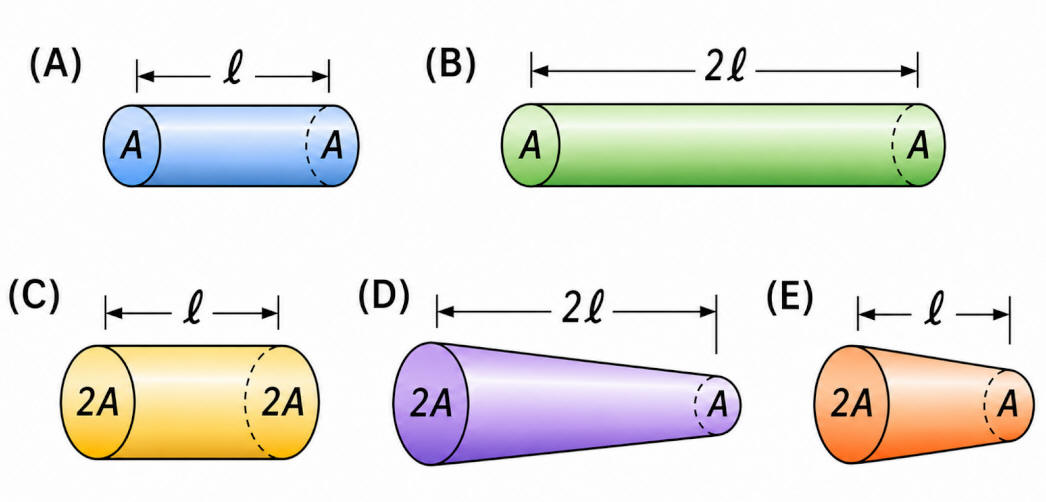

Ranking Task

Rank the resistance of the wires below from smallest to largest.















AP Physics B


Giancoli p. 516) 16





L and R are direct

L + 4L = Total Length = 5 L

Cut the wire at 20 % of total length



Since wire R = 10 ohms



R1 = 2 ohms, R2 = 8 ohms









[ Flash ]









3) Resistance and Temperature

(Double Click on Picture above to start video)

Full Size Video



Scientific Advisors: Dr. Saul Dushman; Dr. Roman Smoluchowski; Dr. David Harker

Prelinger Archives

Production Company: Wolff (Raphael G.) Studios, Inc. Audio/Visual: sound, color
Creative Commons license: Public Domain







Metals



T down, R down



T up, R up









(many electrical devices
 have fans to decrease T)








Nonmetals – When temperature increases, resistance decreases



Superconductor - conductor with no resistance



Achieved only at very low temperatures
(expensive now)
