Speed and Medium for a Wave

School blocks YouTube? Download the file below

| Onsite |

| Mythbusters |





Video Instruction

showmethephysics.com







F. Speed – the number of meters a single cycle travels per second



1.  V = fλ





solve for f:





f = v/λ

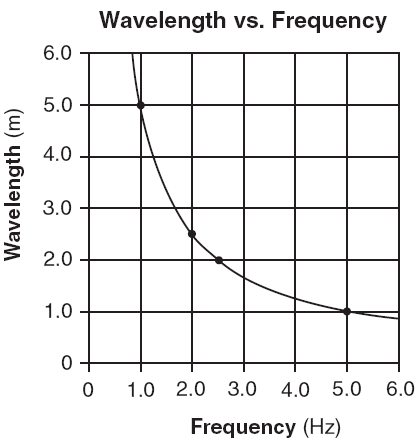

inverse relationship



















2. Speed of wave depends on the medium



(slower in dense media)

[ Flash ]





slinkyreflections2.mov

Rutgers University

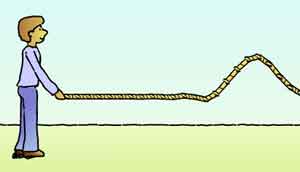

Speed Of a Mechanical Wave

[ HTML5 ]

Monterey Institute









Ex) f = 40. hertz. V = ?





(1) 13 m/s (2) 27 m/s (3) 60. m/s (4)120 m/s

Jan 2002 Test







V = fλ





V = 40. Hz(1.5 m)







(3) 60. m/s















Ex) Period = 5.0 sec. V = 20. m/s

Wavelength = ?



V = fλ



Need f????





T = 1/f



 5.0 sec = 1/f



f = .20 Hz



V = fλ



20. m/s = (.20 Hz)λ



= 1.0 x 102 m



Wave PreLab Questions





3. Velocity sound = 3.3 x 102 m/s

(Air, Reference Table, room temperature)





School Blocks YouTube? Use link below.

Jet breaking speed of sound
Cambridge U.





"A "sonic boom"

is heard when a

plane exceeds

the speed of sound. "

School blocks YouTube?
Download file below.

SonicBoom Video













Velocity light in a vacuum





= 3 x 108 m/s
(Reference Table)

Wikimedia
Intracloud lightnings over Toulouse (France).
Original source is Image,






About how many times faster is
light

than sound?





p. 1 Reference Table











About 1 million times









Gap between time you see lightning and time you hear thunder tells ....





... distance of lightning







If time gap is small?





Lightning is close







Large gap of time?











Lightning far away









Did you know ...

Every 5 seconds gap = 1 mile

'...you can approximate the storm's distance in miles by counting the seconds between the lightning and thunder and dividing by five. It takes about five seconds for the sonic boom to travel one mile, so if you see the sky illuminated by a streak of lightning and count 10 seconds until you hear the low rumble of the thunder, the storm is about two miles away.'

- Ask Yahoo







Vibrating Tuning Fork - Slow Motion

Drdanku YouTube Channel

School blocks YouTube?

Tuning Fork Vibration.mp4

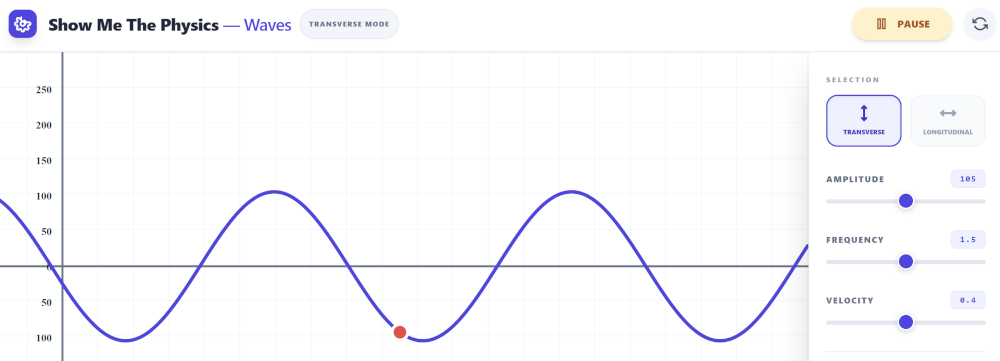

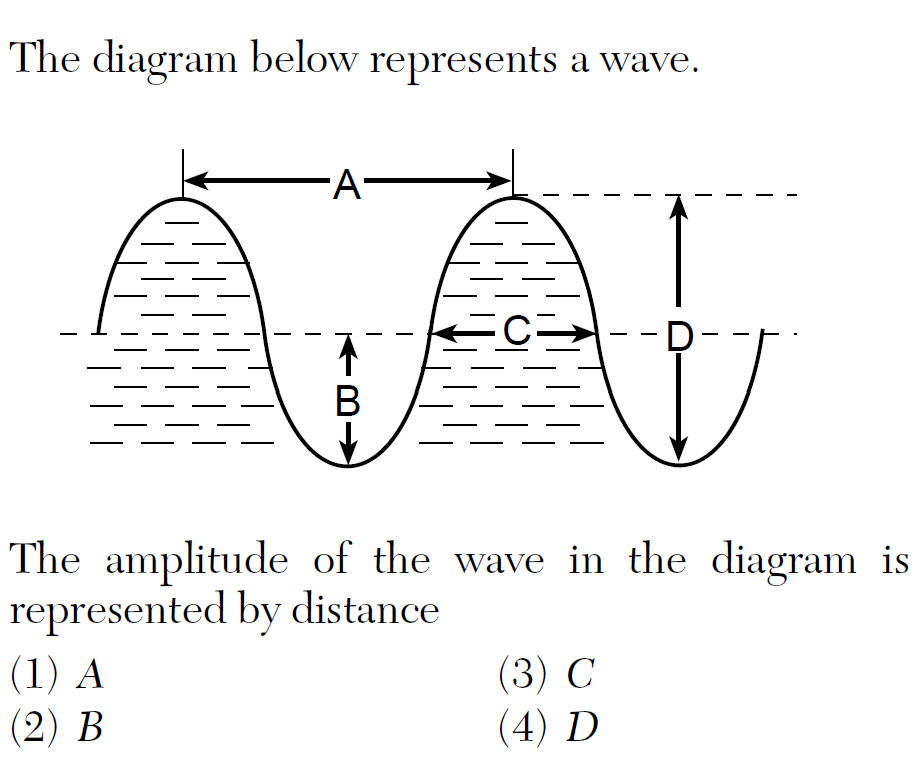

Wavelength, frequency,
period, speed, amplitude.

Which 3 are determined by the source of a wave?









frequency, period, amplitude.







Summary
Source Medium
frequency speed
period wavelength
amplitude
