Standing Waves

 – waves produced when two waves with the same frequency and wavelength travel in opposite directions in the same medium (Musical instruments)

I. Standing Waves - Both Ends Closed

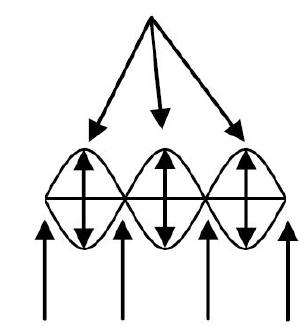

A. Nodes and Antinodes, etc

Ex)

a) Mark the nodes with a dot.

How many are there?

5

b) Mark the ANTInodes with a large X

How many are there?

4

c) How many wavelengths do you see above?

2

d) Maximum CONstructive interference occurs at the

Antinode

e) Maximum CONstructive interference occurs at the

Nodes

B. 1st , 2nd , 3rd ….. Harmonic

Closed End Standing waves always have a node at each end****

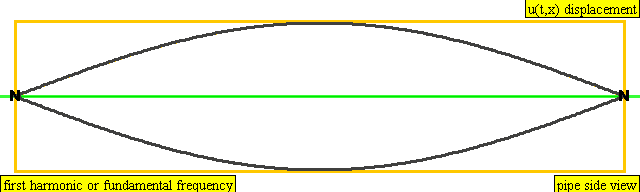

1. Fundamental or First Harmonic (N.A.N.)

Draw the first harmonic.

How many wavelengths?

Juan Aguirregabiria and lookang

(Standing Wave length) L = 1/2 wavelength

So l = 2L (Twice the length of the whole standing wave)

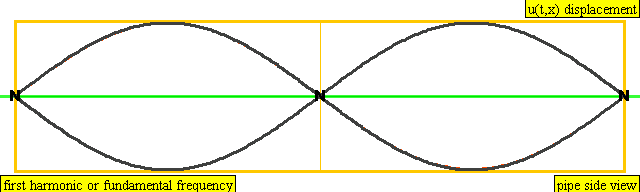

2. Second Harmonic (N. A. N. A. N.)

Draw the second harmonic.

How many wavelengths?

L = 4/4 or 1 wavelength

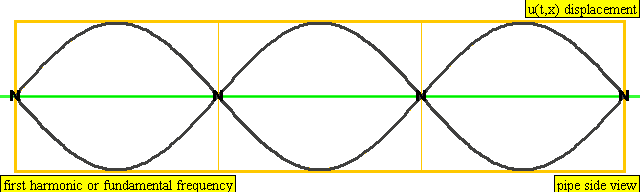

3. Third Harmonic (N. A. N. A. N. A. N.)

Draw the third harmonic.

How many wavelengths?

L = 6/4 or 3/2 wavelengths

So l = 2/3L (or 2/3 the length of the standing wave)

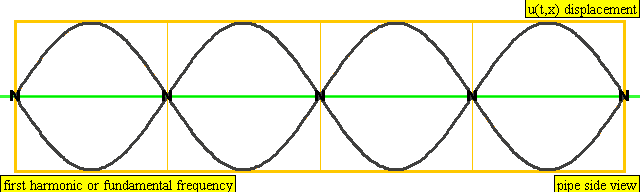

4. 4th Harmonic (N. A. N. A. N. A. N. A. N.)

Draw the fourth harmonic.

How many wavelengths?

L = 8/4 or 2l

so l = L/2 (or 1/2 the length of the standing wave)

5. 5th Harmonic (N.A.N.A.N.A.N.A.N.A.N.)

Draw the fifth harmonic.

How many wavelengths?

L = 10/4 or 5/2 wavelengths

so l = (2/5)L (or 2/5 the length of the standing wave)

Review - Standing Wave - Both Ends

	L = 1/2 l	Fundamental f
	L = 1 l	2x Fundamental
	L = 3/2 l	3x Fundamental
	L = 2 l	4x Fundamental
	L = 5/2 l	5x Fundamental
	L = 3 l	6x Fundamental
	L =7/2 l	7x Fundamental

3 antinodes 4 nodes

a) Nodes: Max Destructive Interference b) Antinodes: Max. Constructive Interference

L = distance between walls

String closed at both ends
 or Open Pipe Both ends

L = (nl/2)

n = 1,2,3 ....

since v = fl

then

f_n = n[v/2L]

n = 1,2,3 ....

Each frequency is a multiple of the fundamental frequency

D. Open at Both Ends

1/2, 2/2, 3/2, 4/2

L = n(1/2)λ

showmethphysics.com

showmethphysics.com

Giancoli p. 348) 34, 36

34) Closed

88 Hz is fundamental

36) Open Pipe Fundamental 40 Hz, both are even number multiples of 40 not odd multiple of 20

f = v/2L = 40 Hz = (340 m/s)/2L   L = 4.3 m

Review Book p. 302) 10.

Open at one end

n = 1 fundamental

f = v/4L

= 340 m/s/(4 x .17)

= 500 Hz

p. 303) 10

Beats - Rhythmic interference between two semi identical frequency sources

Beat Frequency = |f₁ - f₂|
