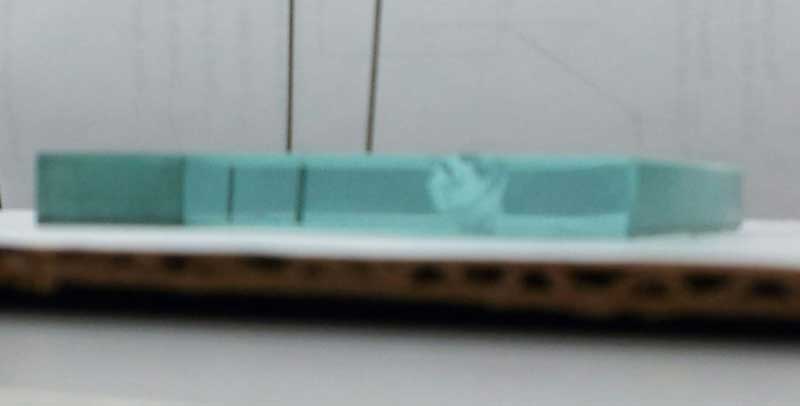

Pins viewed in the glass and outside the glass







[ Flash ]





1. Speed and Refraction

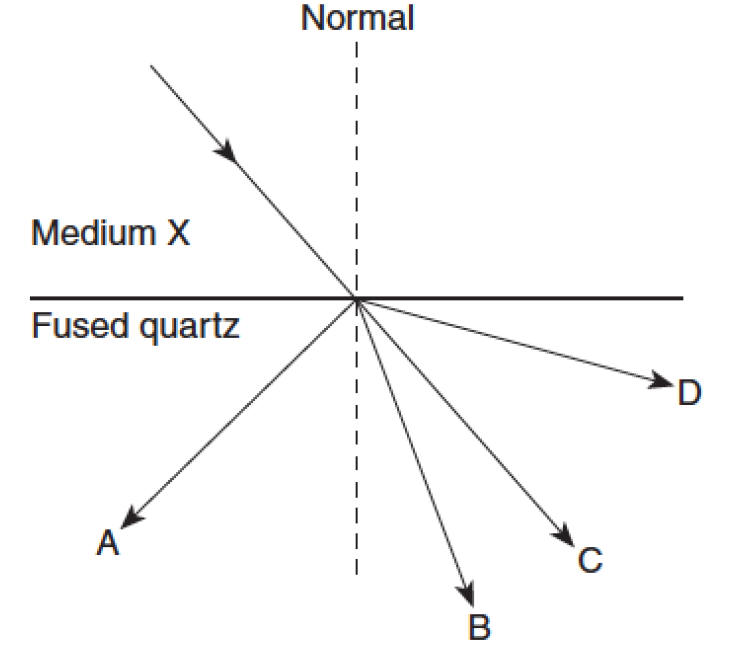

a) If fused quartz is faster?









D

(angle of refraction < angle of incidence)



c) Fused quartz same speed as Medium X









C

(No bending)






d) This ray is not possible













A

(light always crosses over normal)

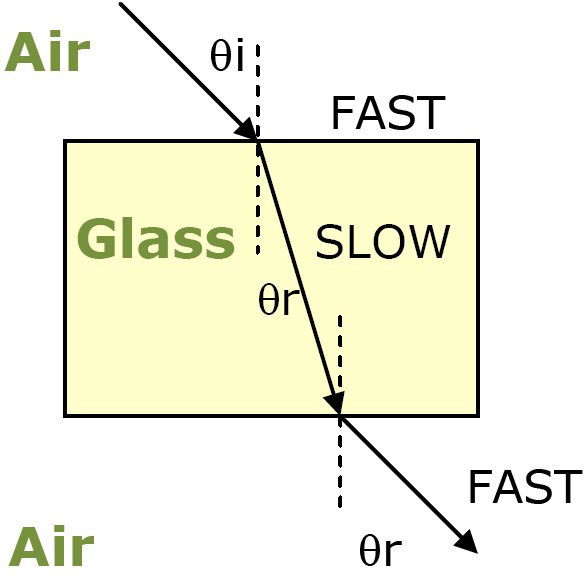

If Light goes from fast medium to slow, light bends toward the normal










Slow medium to fast,
light bends away from the normal

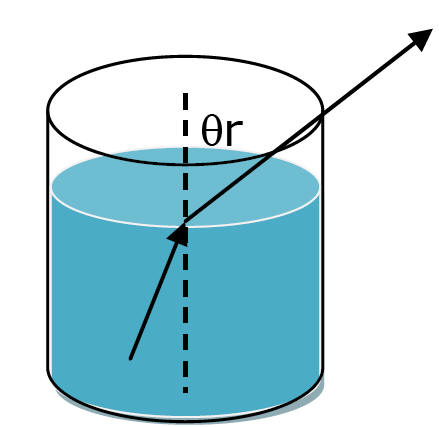

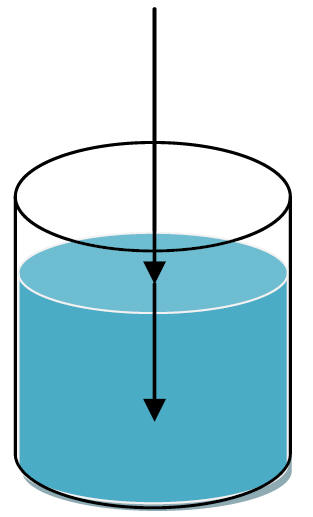

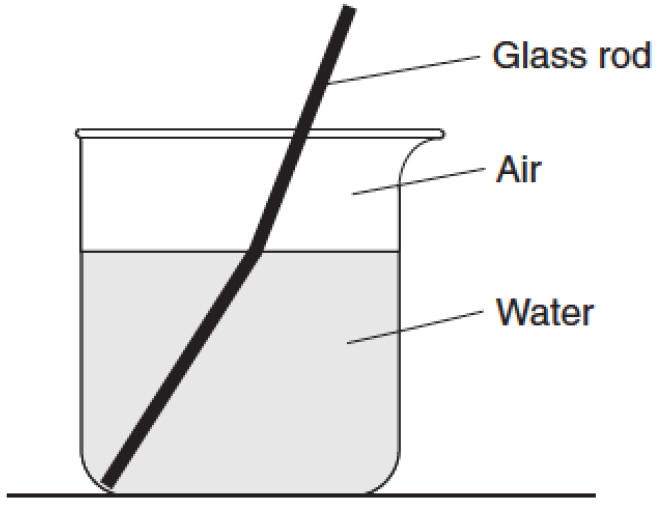

  Light Ray leaving water
 and entering Air




Velocity of Air > Velocity of Water













If θin = 0 degrees,

No Refraction







(Light must come in at
an angle to be refracted)

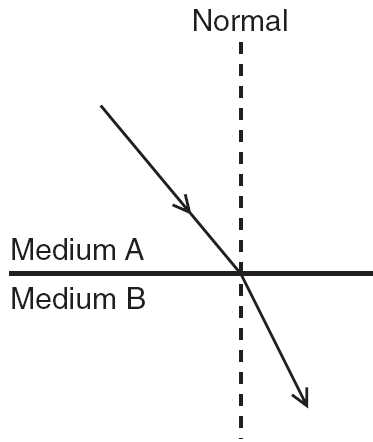

Which medium is faster?











Medium A

(larger angle from normal)







REFRACTION IS ALWAYS
ACCOMPANIED BY REFLECTION

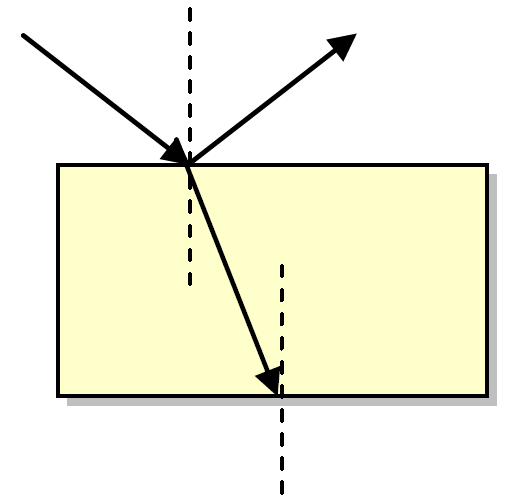

Find the missing ray in

the ray diagram below











The reflected ray at

the glass/air boundary

 is  missing.







Refraction -
David M. Harrison









Did you know....

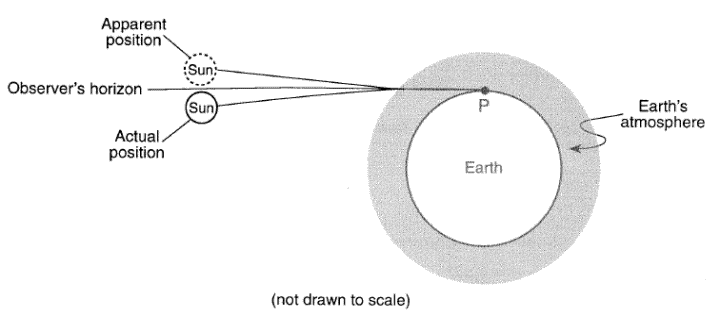

A sunset is an optical illusion !!!









Refraction allows you
to see the sun
even after it has set.

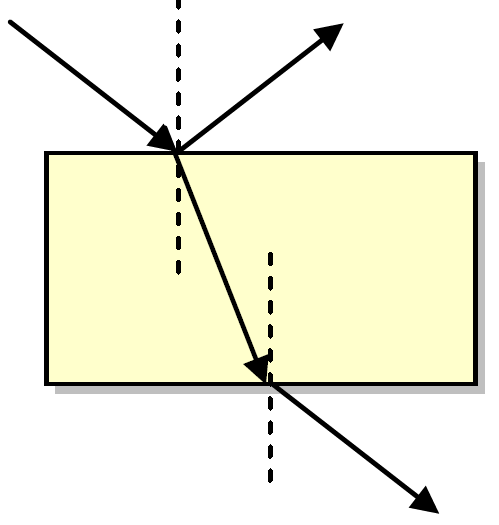

Which ray diagram is correct?











Choice 2

(Angle ray leaves air = Angle ray enters air)

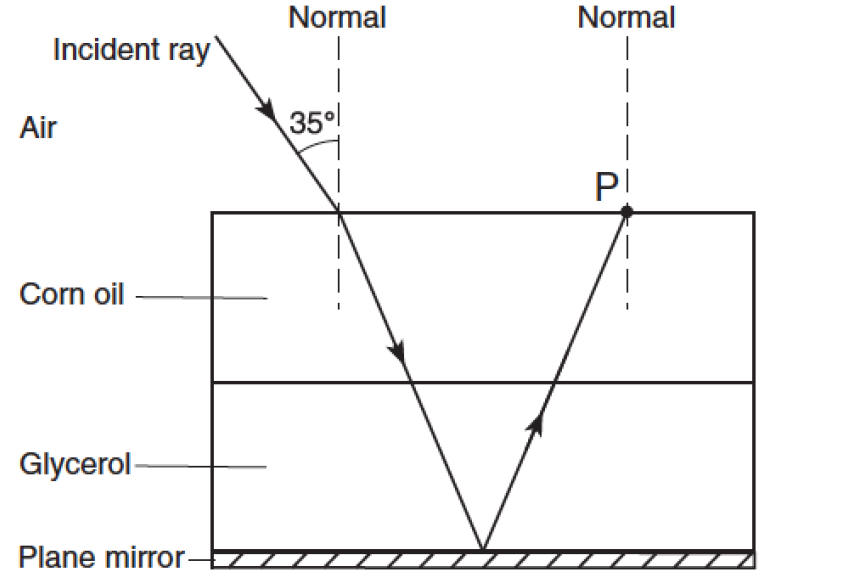

At what angle will the ray reenter the air?





June 2008 #72



35 degrees











What's wrong with this picture?











Air is faster than flint glass. second angle should be larger
