Box on table has friction


coeff. of friction = uk
Fnet = ma
make clockwise +

Mg - ukmg= (m + M)a

g(M-μkm) = a
(M+m)

Tension force in rope?


Rule  - One rope,
one tension

make clockwise +
Fnet = ma

T  - ukmg = ma




T  = ma + umg

Ex) T in terms of M

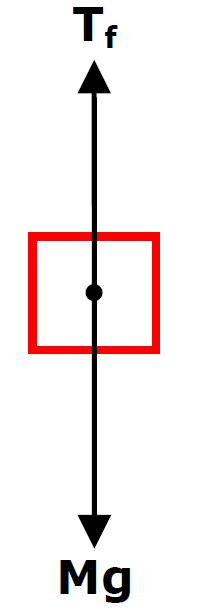

Draw freebody diagram for M

ΣFy=Ma

Mg -Tf  = Ma

Tf = Mg - Ma

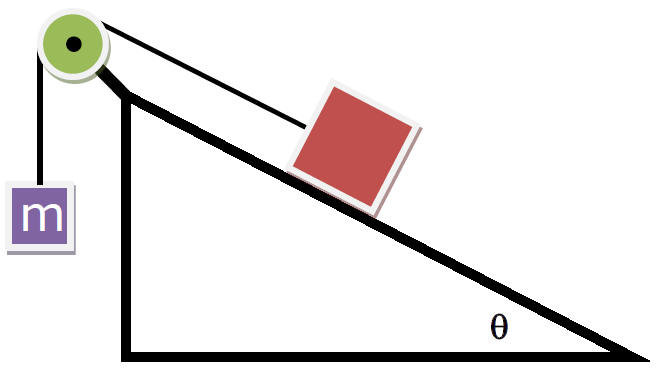

Massless, frictionless pulley and ramp
Find acceleration of red box up the ramp (M)



Masses move together with one accel.
make CCW +

Fnet = ma


mg - Mgsinq = (m + M)a

Hanging weight force
friction = ma



(m - Msinq)g = a
(M + m)



When does a = 0?



Msinq = m

When does box move down ramp?

(m - Msinq)g = a
(M + m)

When mg greater than MsinӨ>m




AP Friction
