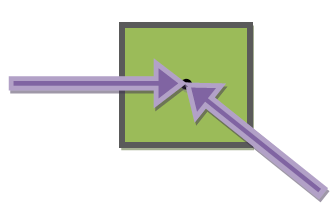

Case III Ө ≠ 0° ≠ 180°



C. Combining Forces - Range of possible resultants



Ex) Forces of 100. N and 30. N force act on a body.



Largest Possible Resultant =



Smallest Possible Resultant = ?







Largest Possible Resultant



= 130 N



Smallest Possible Resultant



= 70. N

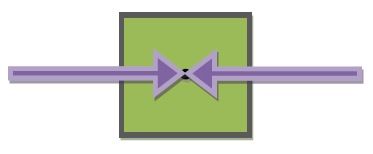

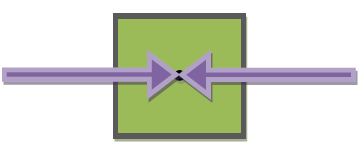

Subtract



Smallest Resultant

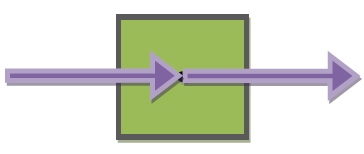

Add



Largest Resultant











Concurrent Forces

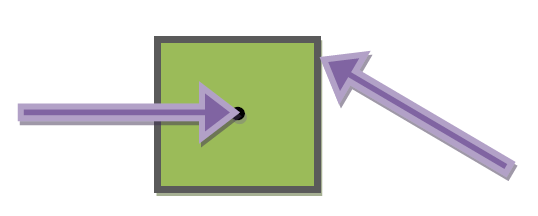

All forces pass through
a common point


Not Concurrent



Ex) Which pair of concurrent forces may have a resultant of 20 nt?

a)  5 nt + 10 nt

b)  20 nt + 20 nt

 c)  20 nt + 50 nt

d)  30 nt + 5 nt





Hint: Find the range of possible resultants for each choice



  Max   Min
a) 5 nt + 10 nt  15 nt 5 nt
b) 20 nt  +  20 nt  40 nt  0 nt
c) 20 nt  +  50 nt 70 nt 30 nt
d) 30 nt  + 5 nt 35 nt 25 nt





Ranking Task

Two forces act on a body. Rank the angles between the forces below, from largest resultants to smallest.

Angle = 90°
